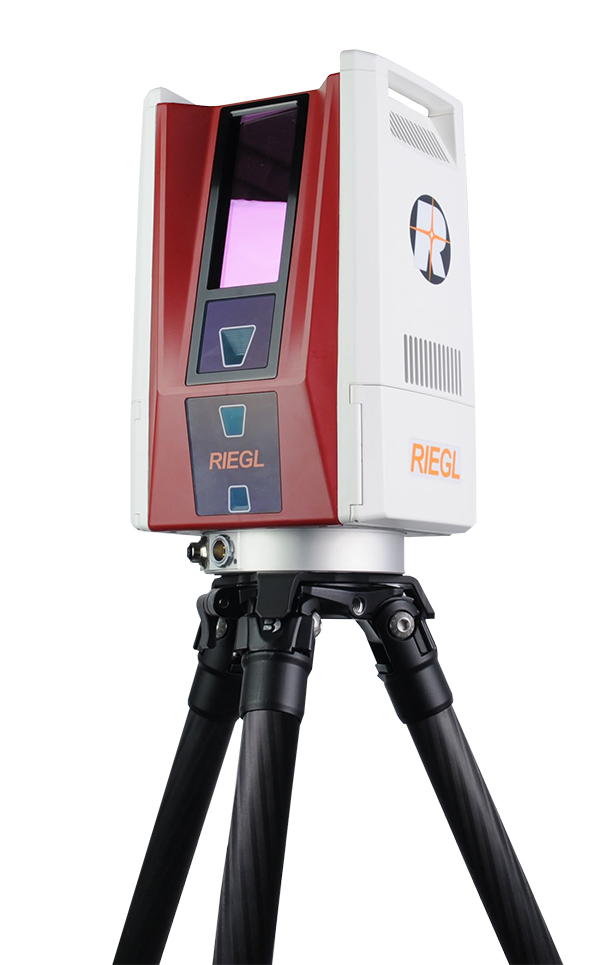

The RIEGL VZ-600i offers a broad range capability from 0.5 m up to 1000 m and is suitable for indoor and outdoor 3D mapping applications. 3D position accuracy of 3 mm, less than 30 sec scan time for high-resolution scans with 6 mm point spacing at 10 m, enabling more than 60 scan positions/hour with real-time registration, weight less than 6 kg (13 lbs), 2.2 MHZ PRR, three internal cameras & GNSS integrated, and also prepared for mobile mapping applications – these key features will speed up your workflow in indoor and outdoor applications like AEC (Architecture, Engineering, Construction), BIM (Building Information Modeling), as-built surveying, forensic and crash scene investigation, archeology & cultural heritage documentation, forestry, and many more.

Main Features

  • Broad range capability (0.5 m up to 1000 m)
  • 5 sec scan time for low resolution overview scans
  • 30 sec scan time for 6 mm resolution @ 10 m distance
  • 60 scan positions per hour (with image acquisition)
  • 3D position accuracy up to 3 mm @ 50 m
  • High laser pulse repetition rate of up to 2.2 MHz
  • Scan speed up to 420 lines/sec
  • Eye safe operation at Laser Class 1
  • Precise real-time onboard registration
  • Internal cameras (offering optional on-board face detection and automatic Facial blurring in real-time before image storage)
  • Internal GNSS receiver / external RIEGL GNSS RTK receiver (optional)
  • Optional external system camera or panorama camera
  • Weight 6 kg / 13 lbs
  • Prepared for mobile use
