Elevate your mapping results with this array of top-tier sensors, including the RGB 61 MP full-frame camera and their advanced LIDAR sensor, each ensuring unparalleled resolution and accuracy in aerial mapping. These payloads are specific to the Wingtra drones.
GREMSY VIO
Vio series is an advanced lightweight EO/IR payload, featuring a 4K zoom sensor, a 640×512 radiometric thermal camera, and an integrated 2400m laser rangefinder, ready for various industrial applications.

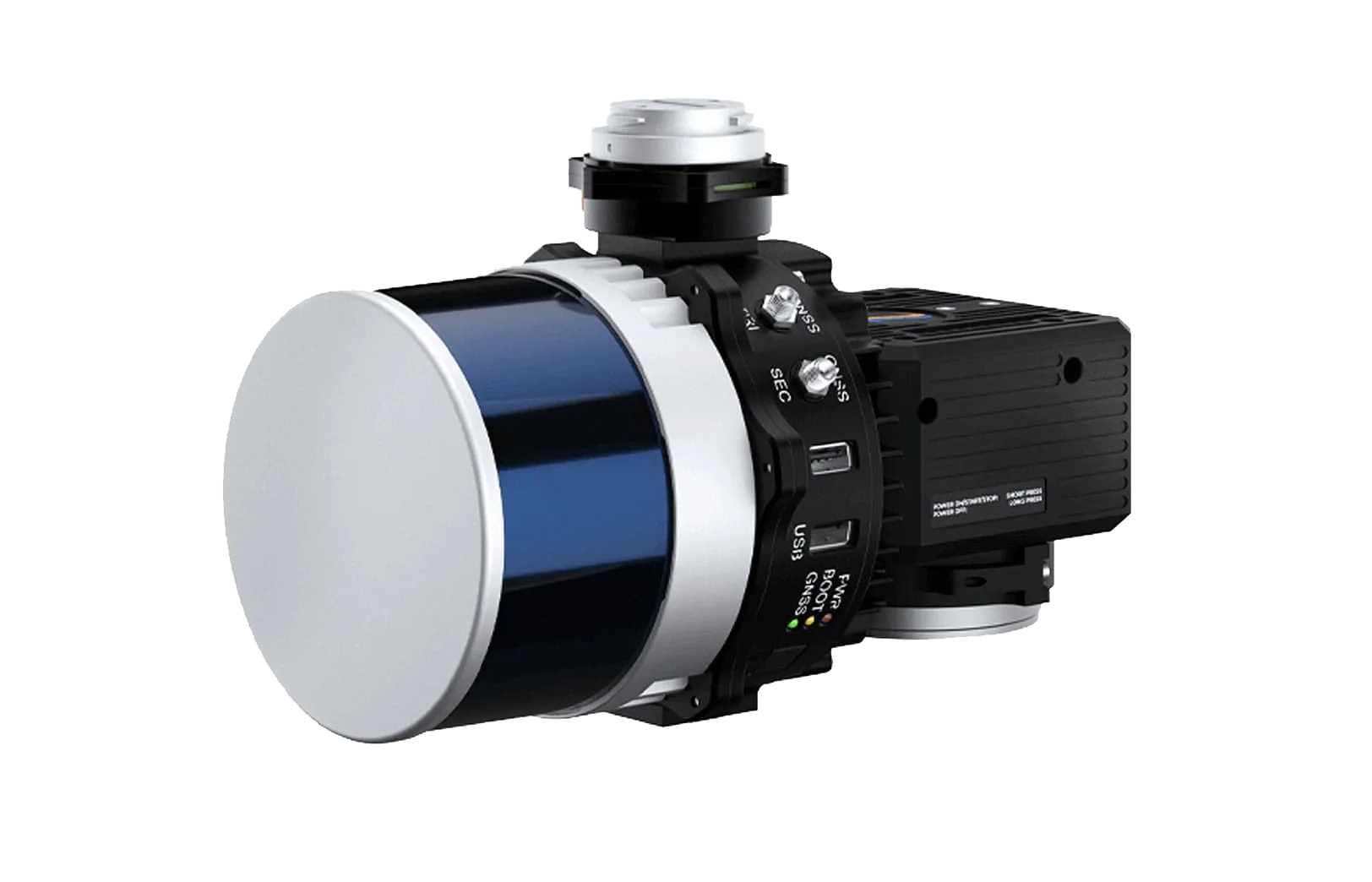

RESEPI M2X
Description Coming Soon

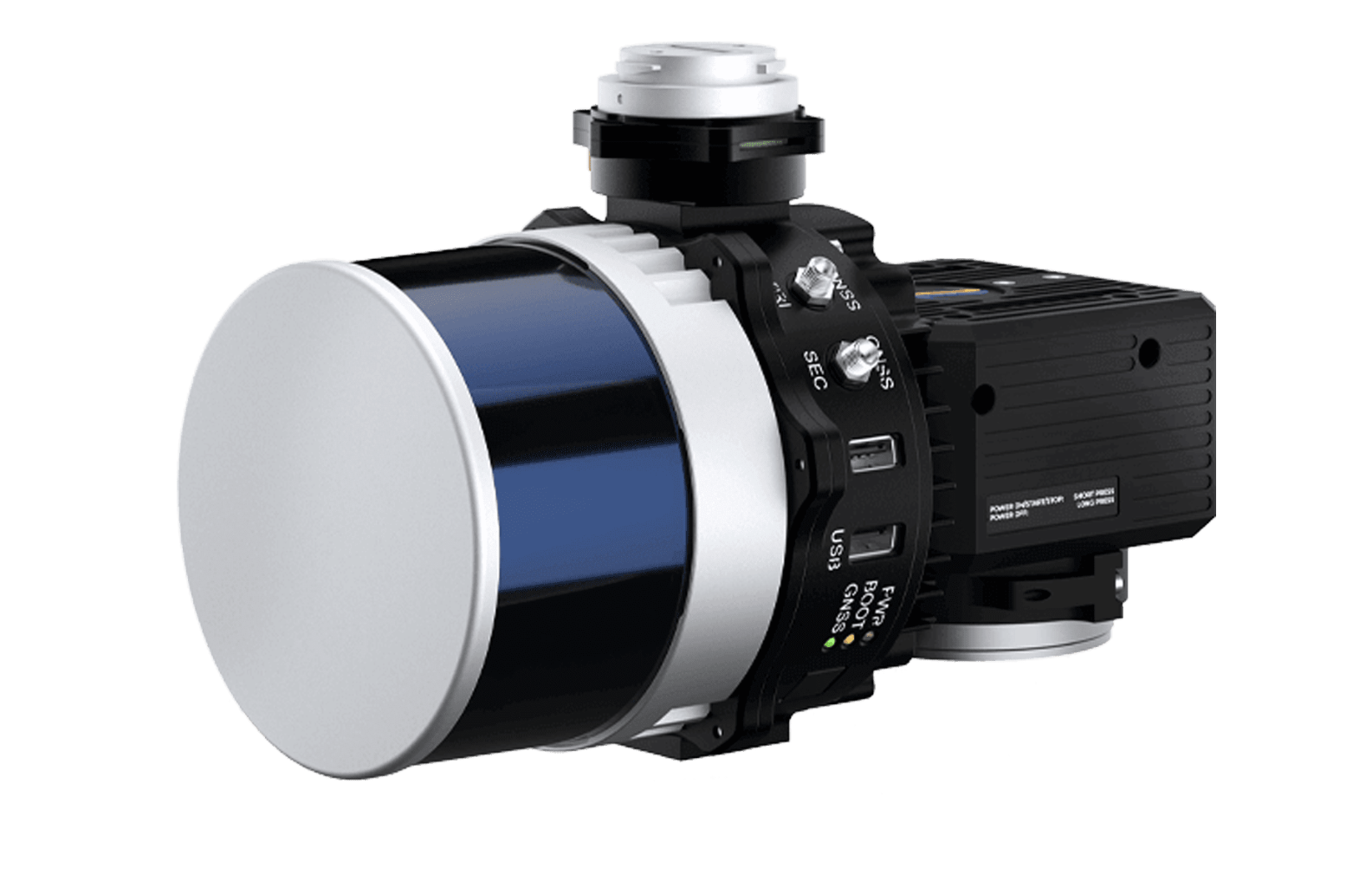

RESEPI XT32
The Remote Sensing Payload Instrument. Compact and light-weight, the RESEPI XT-32 LiDAR scanner is an all-around very attractive system, offering the benefits of best-in-class data accuracy, good detection range, high point density, and versatility.

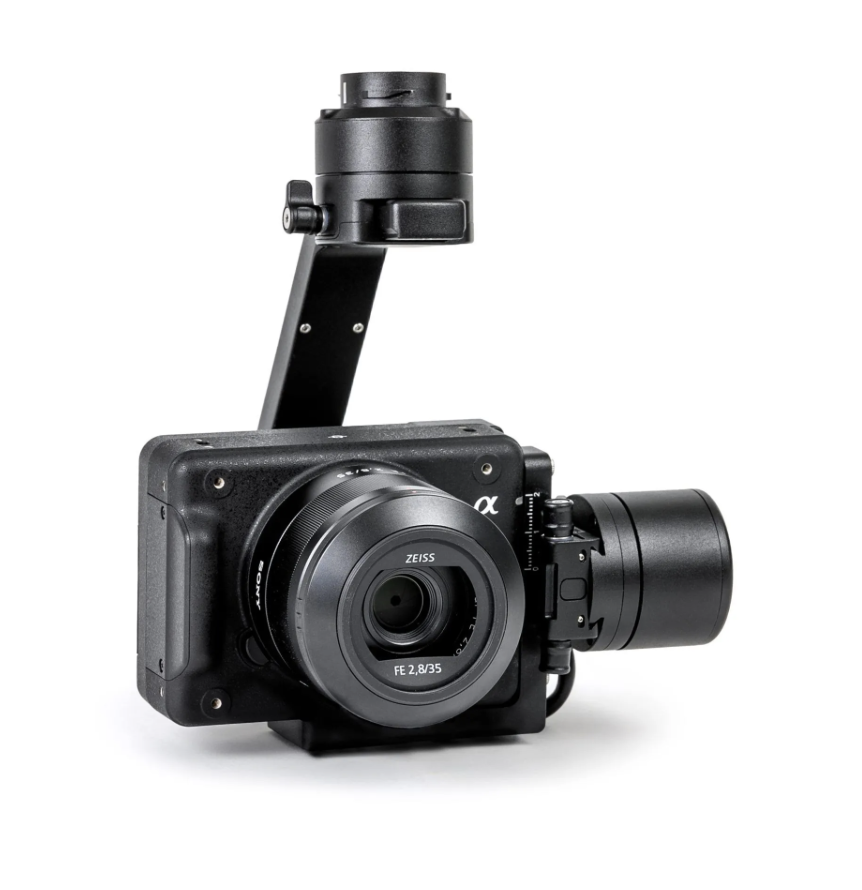

Sony ILX-LR1
Powered by a 61-megapixel full-frame back-illuminated Exmor R CMOS sensor and the BIONZ XR image processor, the new ILX-LR1 offers the same fantastic image quality performance that we see from the a7R V, including excellent resolving power, wide dynamic range, and a broad ISO range spanning 100-32000 (native).

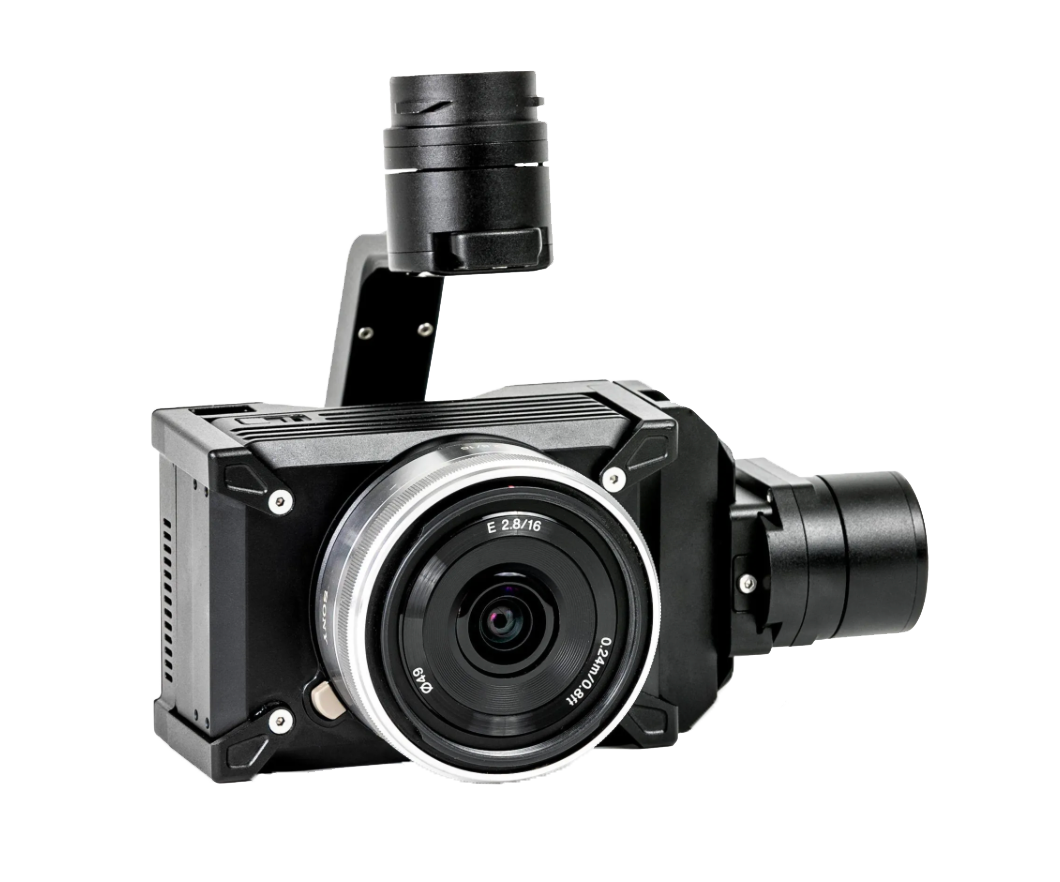

24MP Camera
The WISPR 24MP mapping camera is equipped with a full-frame Sony APS-C sensor, boasting an impressive 24.3 effective megapixels for high-resolution aerial mapping. With RTK and PPK compatibility, a remarkably light design at 120 grams (excluding the lens), and an activated cooling fan to prevent overheating, it offers a versatile and efficient solution for accurate and detailed mapping and inspection applications.

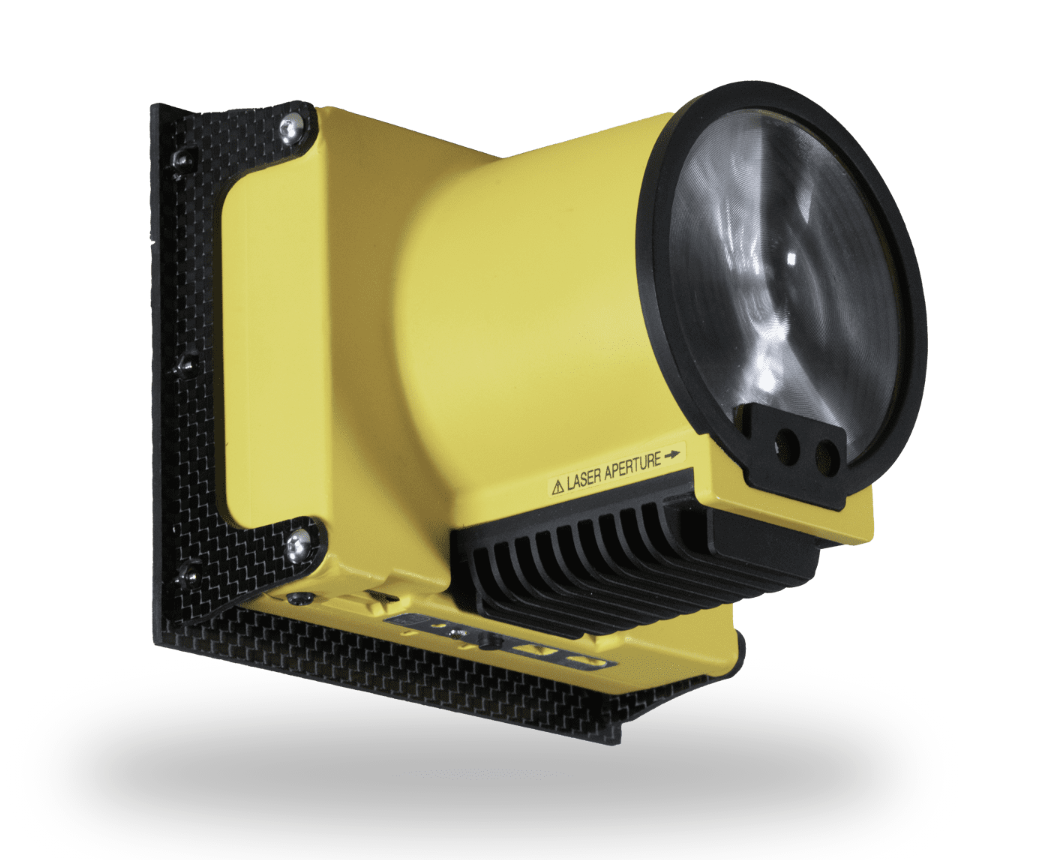

METHANE DETECTOR
The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.
