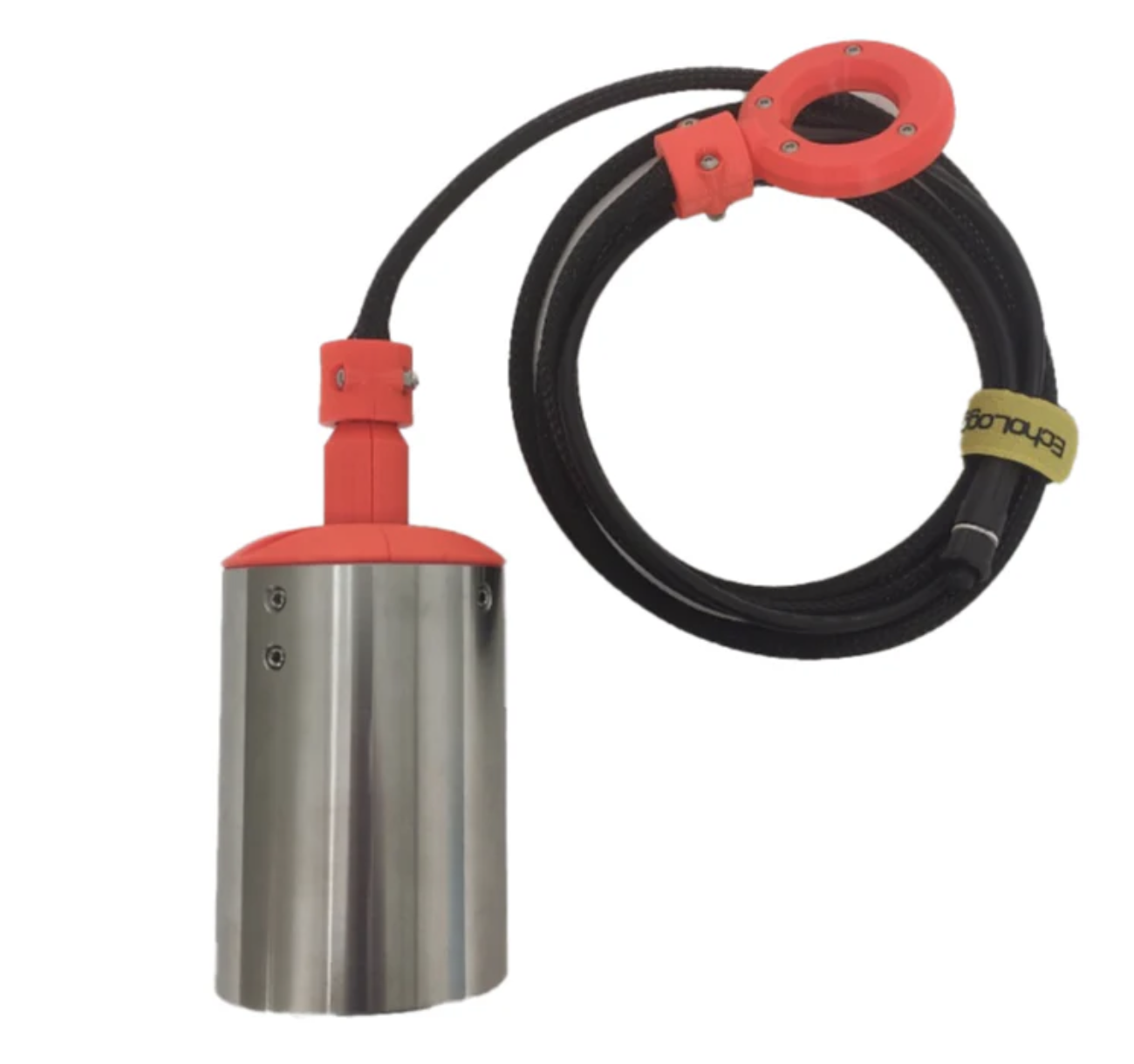

ECT D052S DUAL FREQUENCY
EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
The echo sounder cable is protected by a plastic sleeve which also supports the echo sounder and housing weight.
ECT D24S DUAL FREQUENCY
EchoLogger ECT D24S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
The echo sounder cable is protected by a plastic sleeve which also supports the echo sounder and housing weight.
ECT D24S has optimal combination of frequencies for shallow ponds/lakes/rivers with a lot of seaweeds. For 200kHz it will report continuous reflection from the bottom, 450kHz allows to "cover" shallow areas where low frequency will be useless because of dead zone.
ECT 400S SINGLE FREQUENCY
EchoLogger ECT 400S echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
The echo sounder cable is protected by a plastic sleeve which also supports the echo sounder and housing weight.

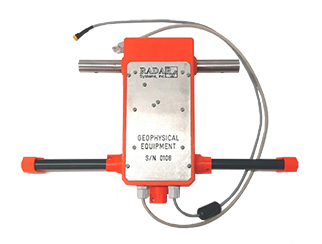

ZOND AERO LF (GPR)
Zond Aero LF ground penetrating radar plus all required components and software for use with DJI M350/M300/M600 drones (drone not included).

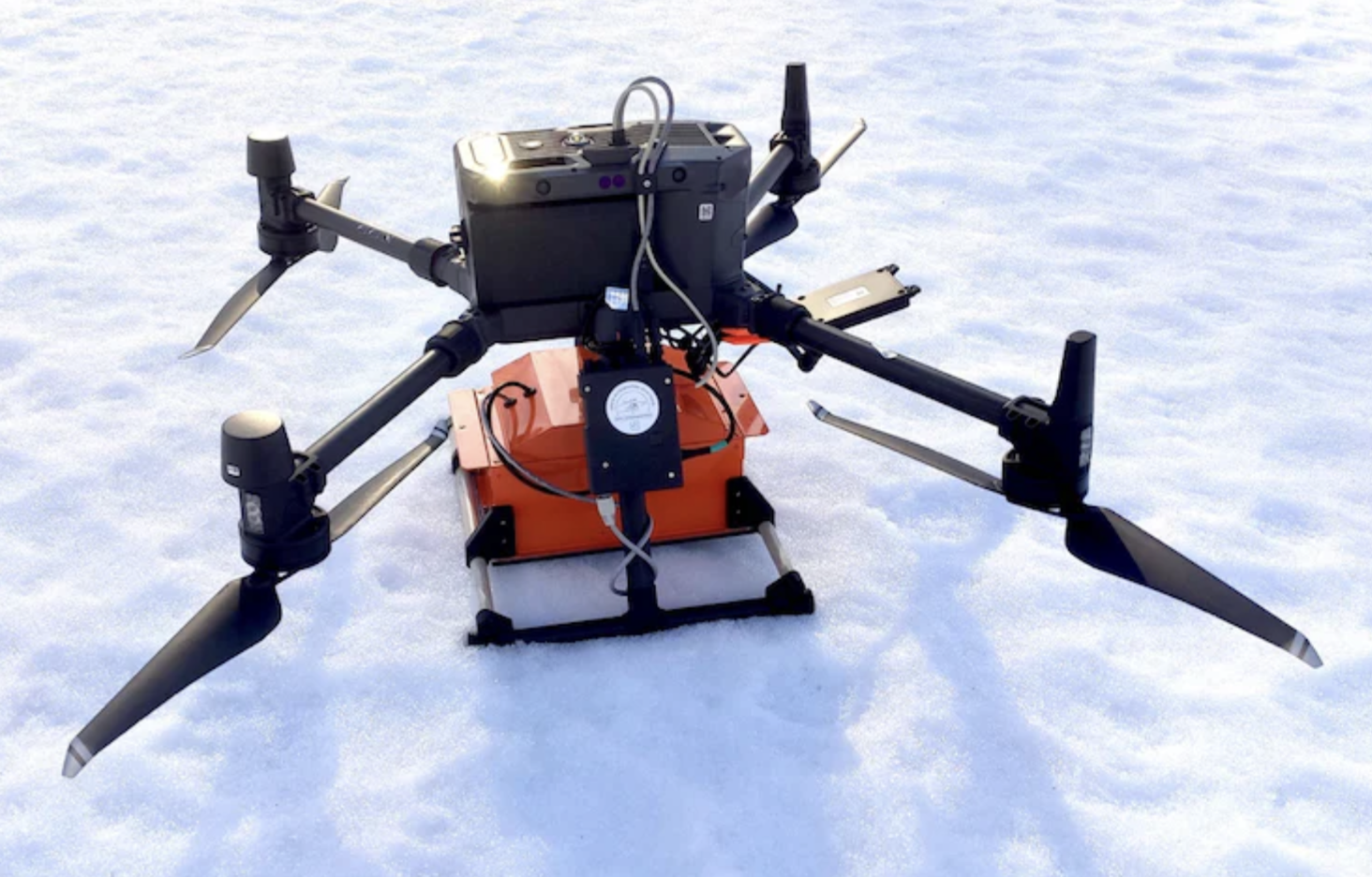

ZOND AERO 1000 NG
Lightweight GPR system, suitable for medium-sized drones like DJI M300/M350 RTK.
NG in the name of device stands for "New Generation": that model utilizes high-speed controller with real-time sampling (RTS) delivering clean data with high signal-to-noise ratio.
Recommended applications:
Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
(Drone in picture not included)

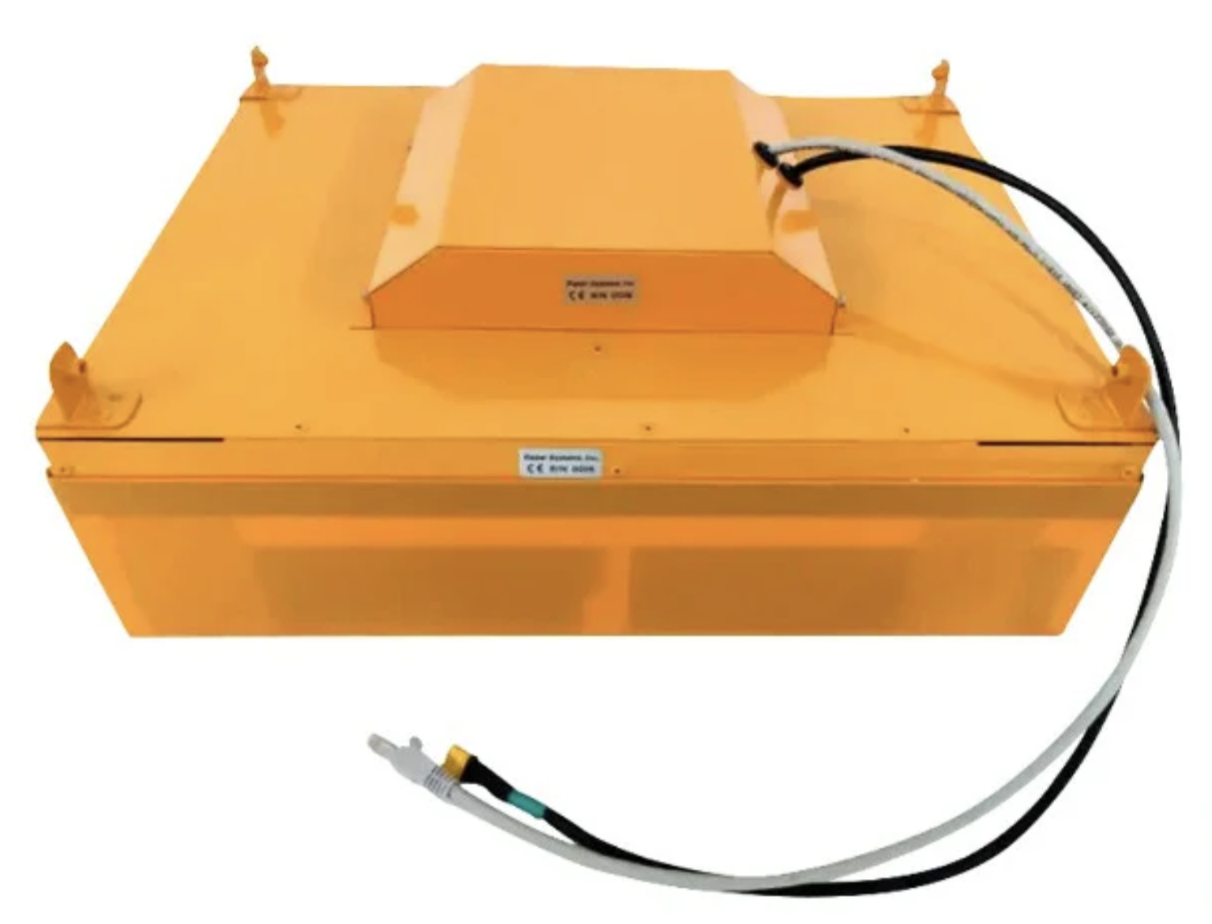

ZOND AERO 500
Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.
Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.

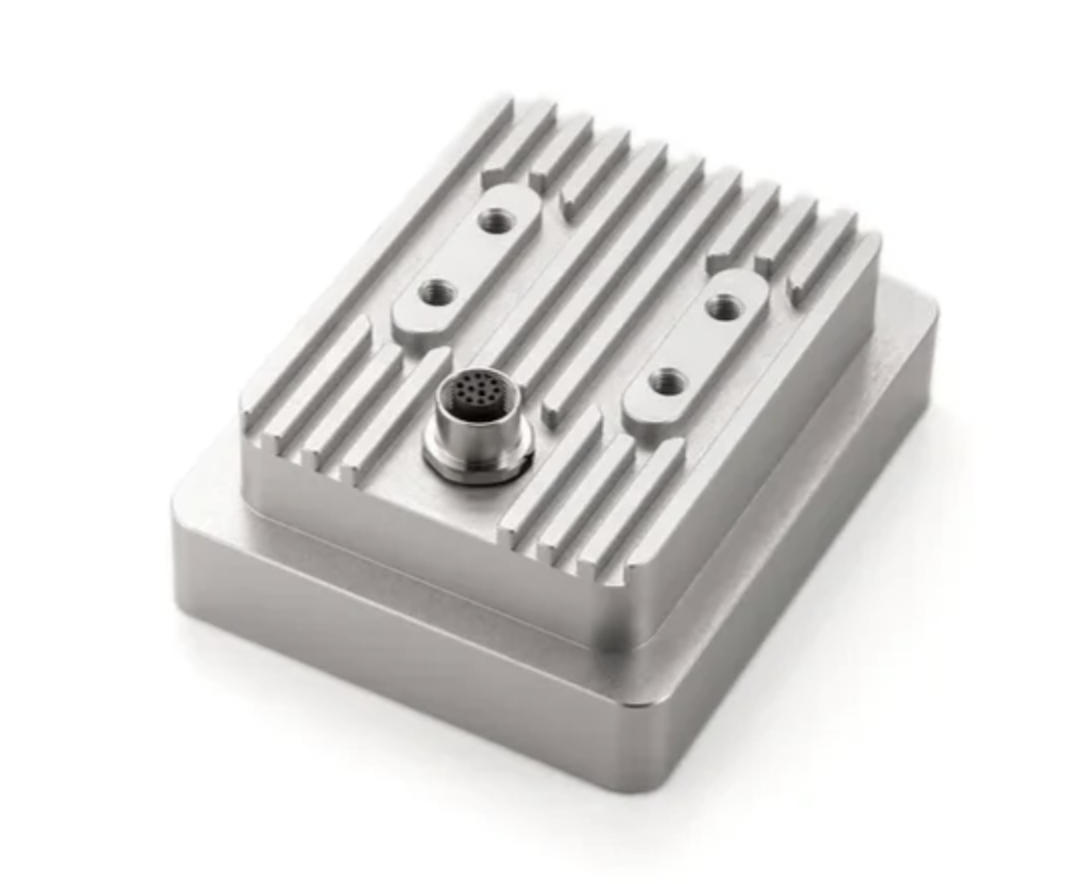

GEOLUX RSS-2-AB
The Integrated System with Surface Velocity Radar uses radar technology to provide contactless measurement of surface flow velocity. The radar operates in K-band (24.075 GHz to 24.175 GHz), providing flow speed readings ten times per second over serial RS-232.
The main advantage of using a sensor on a UAV is the ability to perform measurements in hard-to-reach places without existing infrastructure. The entire process is automated thanks to the onboard computer SkyHub and UgCS Mission Planning software. The sensor installed on the UAV can perform measurements at a specified point.
Typical applications:

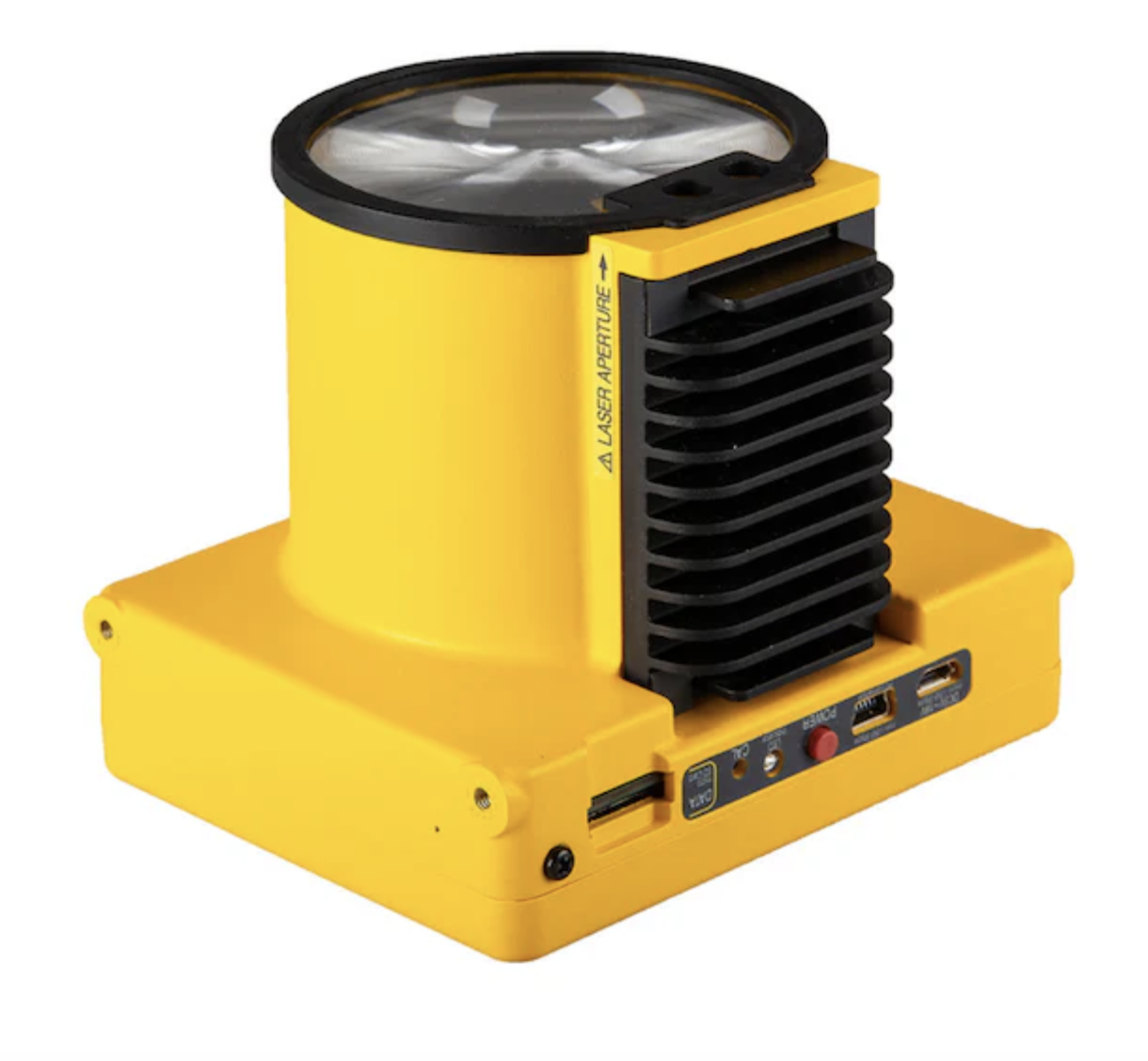

LASER FALCON
The Remote Sensing Payload Instrument
Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.
The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.

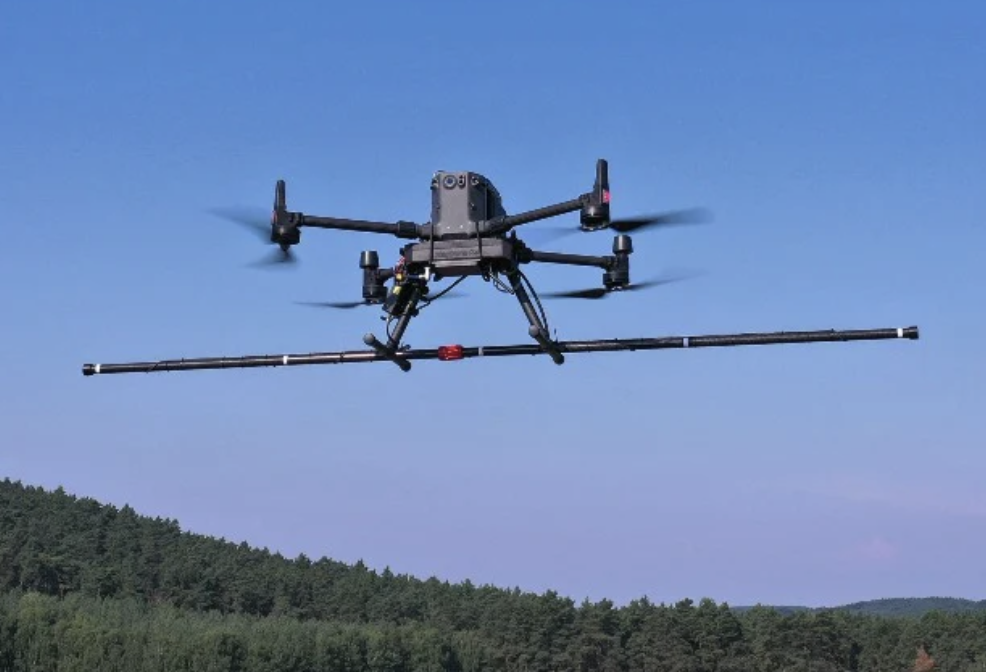

SENSYS MAGDRONE R4
The MagDrone R4 is an ultra light weight magnetometer with 5 triaxial Fluxgates to be attached to any UAV capable to carry 2 kg of payload.
In opposite to the MagDrone R3, the MagDrone R4 is used for high resolution mapping in order to detect small and compact objects as well as structures in the ground, such as UXO or archaeological features.
Recommended applications:
(Drone in picture not included)

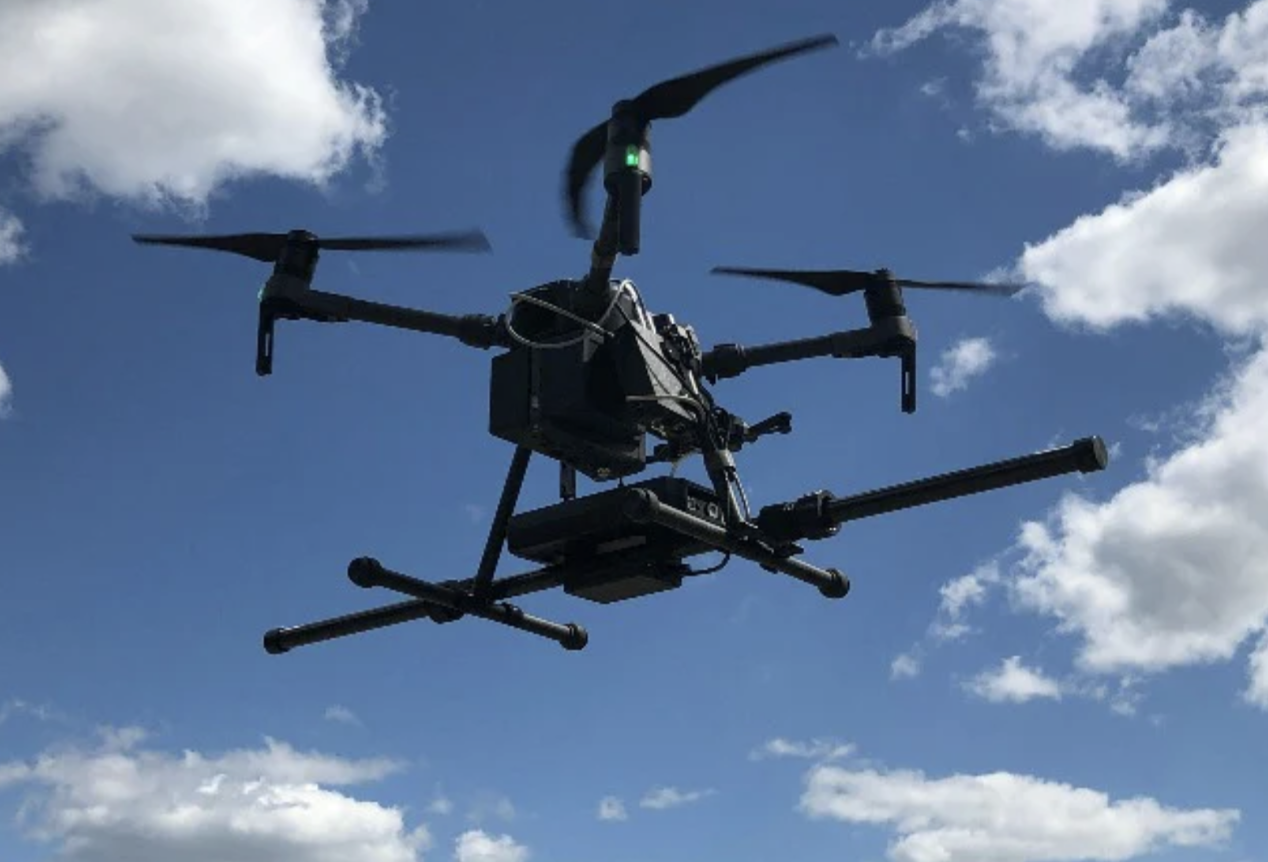

SENSYS MAGDRONE R3
The MagDrone R3 is an ultra portable magnetometer to be attached to any UAV with a minimum payload of 1kg.
Recommended applications:
MagDrone R3 (starting from SN SN000200) has a built-in GPS AND the possibility to connect an external one. Second configuration is recommended to achieve better geotagging of the data, especially when R3 is used with SkyHub onboard computer and RTK-equipped drone.
(Drone in picture not included)

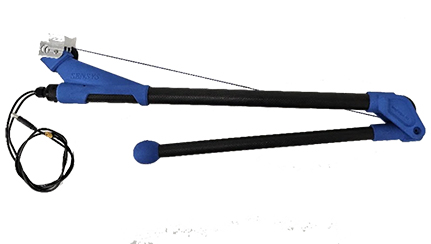

SENSYS MAGDRONE R1
The MagDrone R1 is an ultra portable magnetometer to be attached to any UAV with a minimum payload of 1kg.
Recommended applications:
Unique system design allows to fly with extremely low surface-to-sensor clearance starting from just couple of dozens of centimeters. If the sensor will touch the ground or obstacle/vegetation that will not lead to the drone crash. That capability is extremely important for searching for small UXO items over the fields with vegetation.

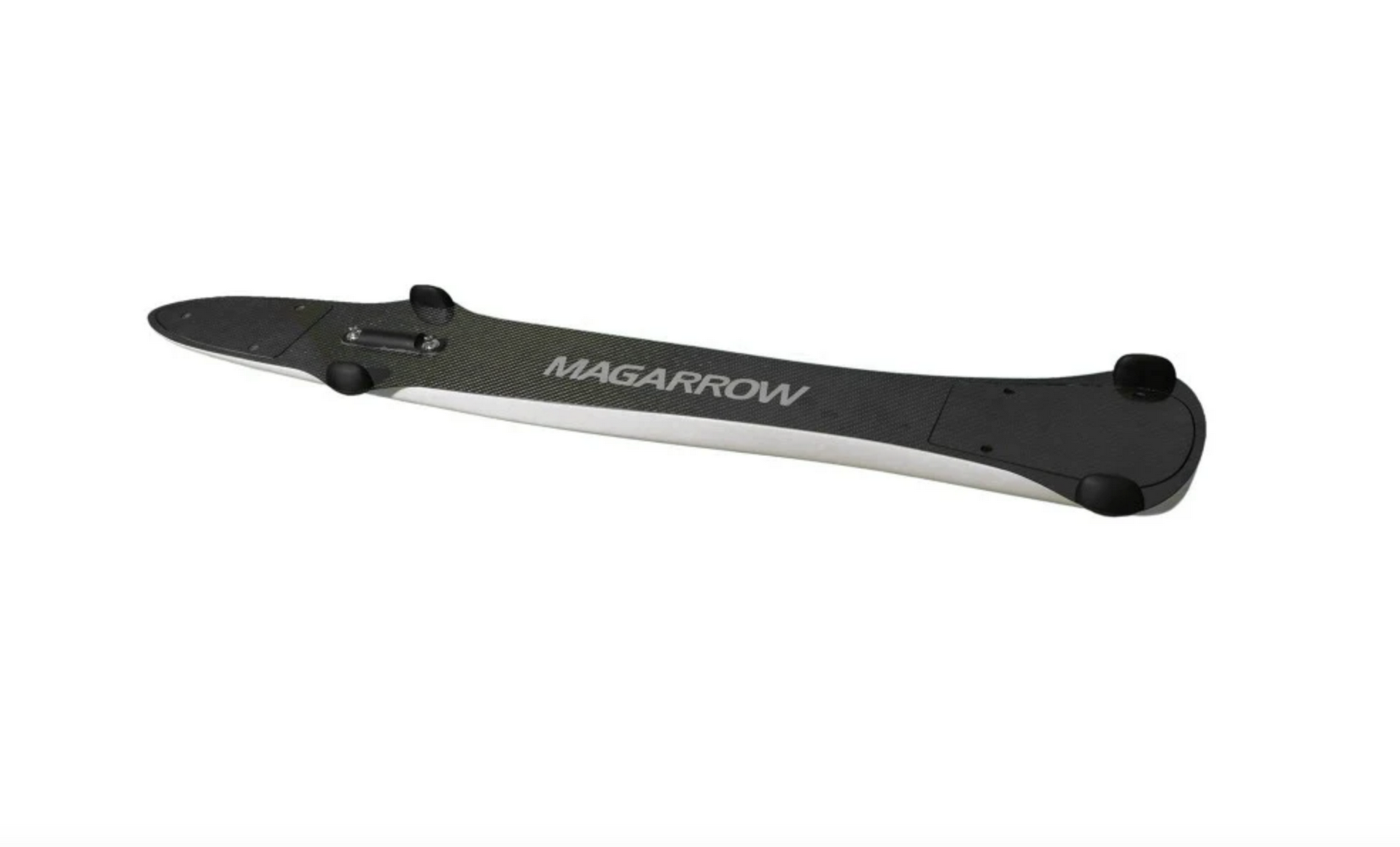

GEOMETRICS MAGARROW MK2
Ultra-sensitive lightweight magnetometer for UAV.
The MagArrow II is the second generation of Geometrics best-selling magnetometer. MagArrow is fully self-contained sensor (with build-in GPS receiver, data recorder and battery), and may be used with any suitable UAV suitable to carry 1kg.
Recommended applications:

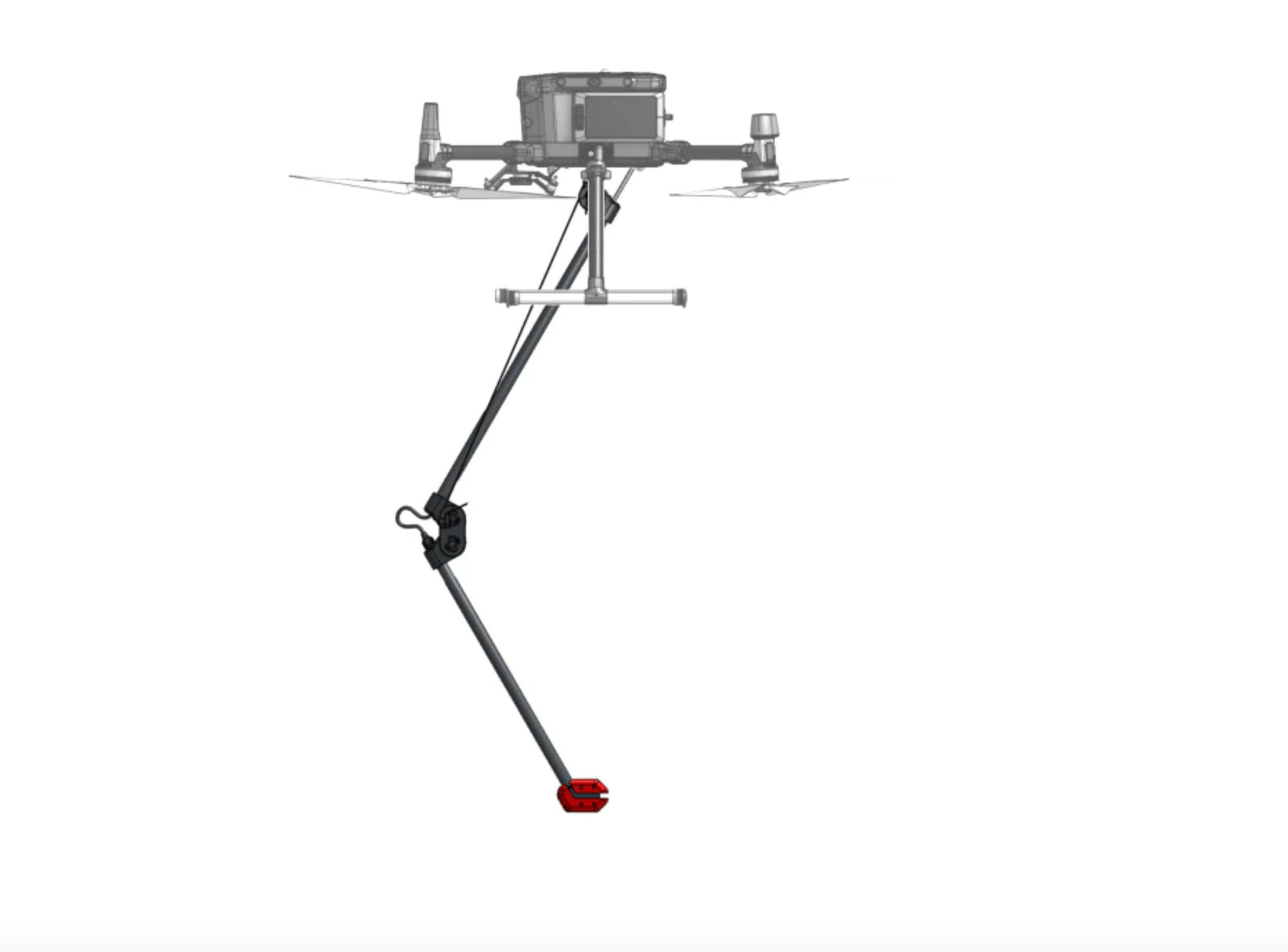

MAGNIMBUS ATOMIC TOTAL FIELD
Ultra-sensitive airborne integrated magnetometer system powered by QuSpin QTFM Gen-2 atomic total-field magnetometer sensors
Typical applications are:
Unique system design allows to fly with extremely low surface-to-sensor clearance starting from just couple of dozens of centimeters. If the sensor will touch the ground or obstacle/vegetation that will not lead to the drone crash. That capability is extremely important for searching for small UXO items over the fields with vegetation.
Self-foldable sensor mount allows easy take-off and landing without excess requirements for drone operator qualification as it is for magnetic sensors on suspension cords.

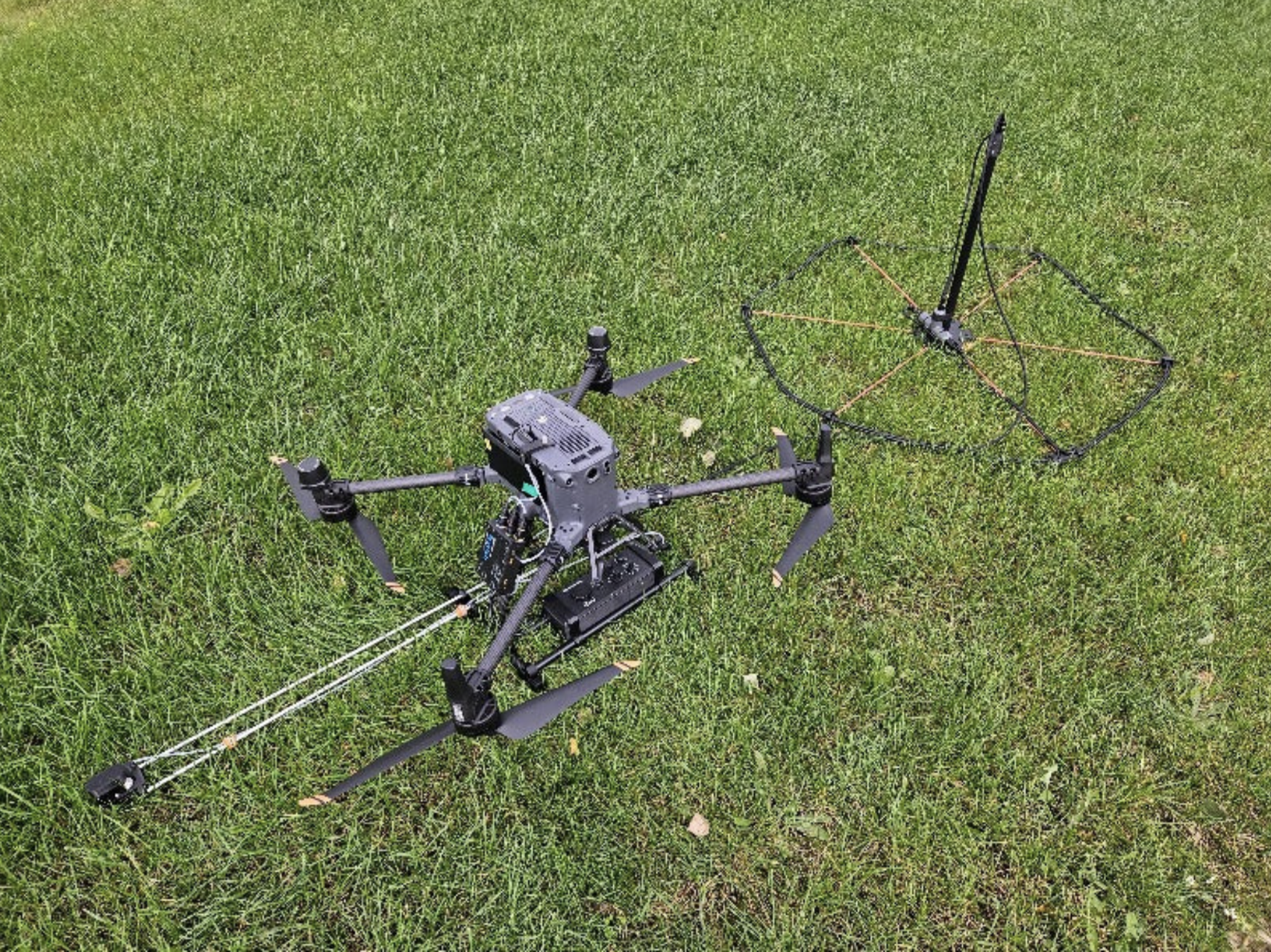

EBINGER VEMOS AIR
Electromagnetic impulse (EMI) geophysical instrument for conductive materials detection.
The Ebinger VEMOS AIR Mk1 is the successor to the Ebinger UPEX 740M "big loop" metal detector. The original UPEX 740M was heavily modified to make it suitable for use on mid-sized drones.
Ebinger VEMOS AIR is capable of detecting non-ferrous conductors and smaller objects compared to magnetometers.
(Drone in picture not included)

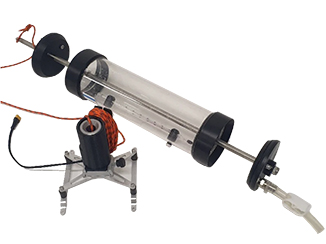

WATER SAMPLER
Ruttner water sampler, 1L
Includes:
